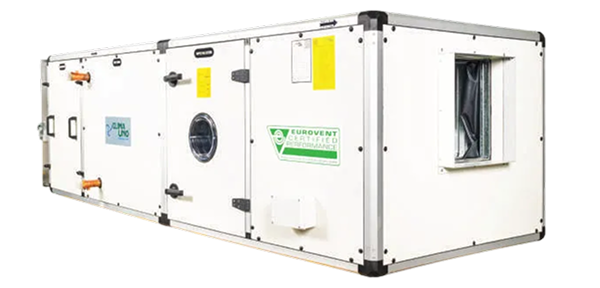

Air Handling Units
- Suitable for Indoor & Outdoor installations
- Airflow range from 200 CFM to 42,000 CFM
- Eurovent Certified
- Static Pressure upto 2500 Pa
- Extruded aluminum profile framework
- Polyurethane panel insulation (mineral wool option available)
- 50 mm thick, double skin insulated thermal break panels
- Stainless steel 304 Drain pan (Optional SS316)
- Heat Recovery Wheel, Heat Pipe & Plate Heat Exchanger options available
Fresh Air Handling Units
- Available in 35 sizes with airflow ranges from 200 CFM to 42,000 CFM
- Eurovent certified (Class – D1, L1, T2, TB2, F9)
- Extruded anodised aluminium with thermal break profile
- 50 mm thick, double skin insulated thermal break panels
- Stainless steel 304 Drain pan (Optional SS316)
- Efficiency: IE2, IE3, IE4 (optional) NEMA motors
- AMCA certified fans
- Heat recovery wheel, Plate heat exchanger, Vertical heat pipe
Fan Coil Units
- Airflow range: 200 – 3000 CFM
- Available in AC and DC motor
- Eurovent Certified FCU
- AHRI Certified Coil
- Chiller/District Cooling application
- Power Supply: 220-240/1Ph/50Hz motor low noise 5 speed unit with various static pressure
- Aluminium Filter: 25 mm
- Factory-installed electric heater as optional
- Stainless Steel Drain Pan (Optional)
- Ducted/Decorative Casing
Ecology Unit
- 15 Sizes : Airflow Range: 1,000 CFM to 24,000 CFM
-
- Effective 4 stage filteration with odor removal system
- Washable type, 1 inches thick metallic panel filters, along with ESP
- Electrostatic Precipitator of plate type filter cell having fumed and mist elimination efficiency ≥ 95%.
- Available in programmable auto wash (Optional)
- Disposable type 2 inches thick synthetic panel filters, G4 class, dust weight arrestance more than 90% as per ISO 16890 standards.
- Disposable type, 24 inches deep, synthetic pocket filters, ISO EPM1, dust spot efficiency between 80 to 90% as per ISO 16890 standards
- Refillable type, 18 inches deep, canister type activated carbon filters.
- Cassette type/Carbon KMNO4 blended filter as an optional
- UV lamps as an optional
- AMCA Certified Centrifugal fans
- SISW fan with TEFC motors outside air stream as per DM standard (optional)
- IP55 degree of protection, Class F insulated, VFD compatible electric motors.
- Custom built units to suit site requirements.
- Based on project requirement, Disposable type, 12 inches deep, High Efficiency particulate air filter, H13 and H4 class as per ISO 16890 standards
ERV
DERV (Dehumidification & Energy Recovery Ventilator)
- Airflow ranges from 200 CFM to 1500 CFM
- Eurovent certified (Class – D1, L1, T2, TB2, F9)
- Extruded anodised aluminium with thermal break profile
- 50 mm thick, double skin insulated thermal break panels
- Stainless steel 304 Drain pan (Optional SS316)
- AMCA certified fans
- Suitable for Indoor & Outdoor installations
- Heat recovery wheel, Plate heat exchanger, Vertical heat pipe
DERV DX
If a supply of chilled water for the cooling coil is not available then DERVDX units, which use DX evaporator coils as the cooling coils, can be used. They are supplied with a matching condensing unit for outdoor installation.
The DERV range is available in three chilled water sizes and 4DX versions denoted by the nominal throughput of air: 150, 250, 375 and 500 (litre/second).
Energy Recovery Ventilation units (without chilled water or DX component)
ERV containing only heat recovery pipes and air moving equipment, is available as well. ERVs use the cooling potential of the extract air to provide ventilation air to space, which has been pre-cooled to an acceptable level, though without the benefit of significant dehumidification.
